Description

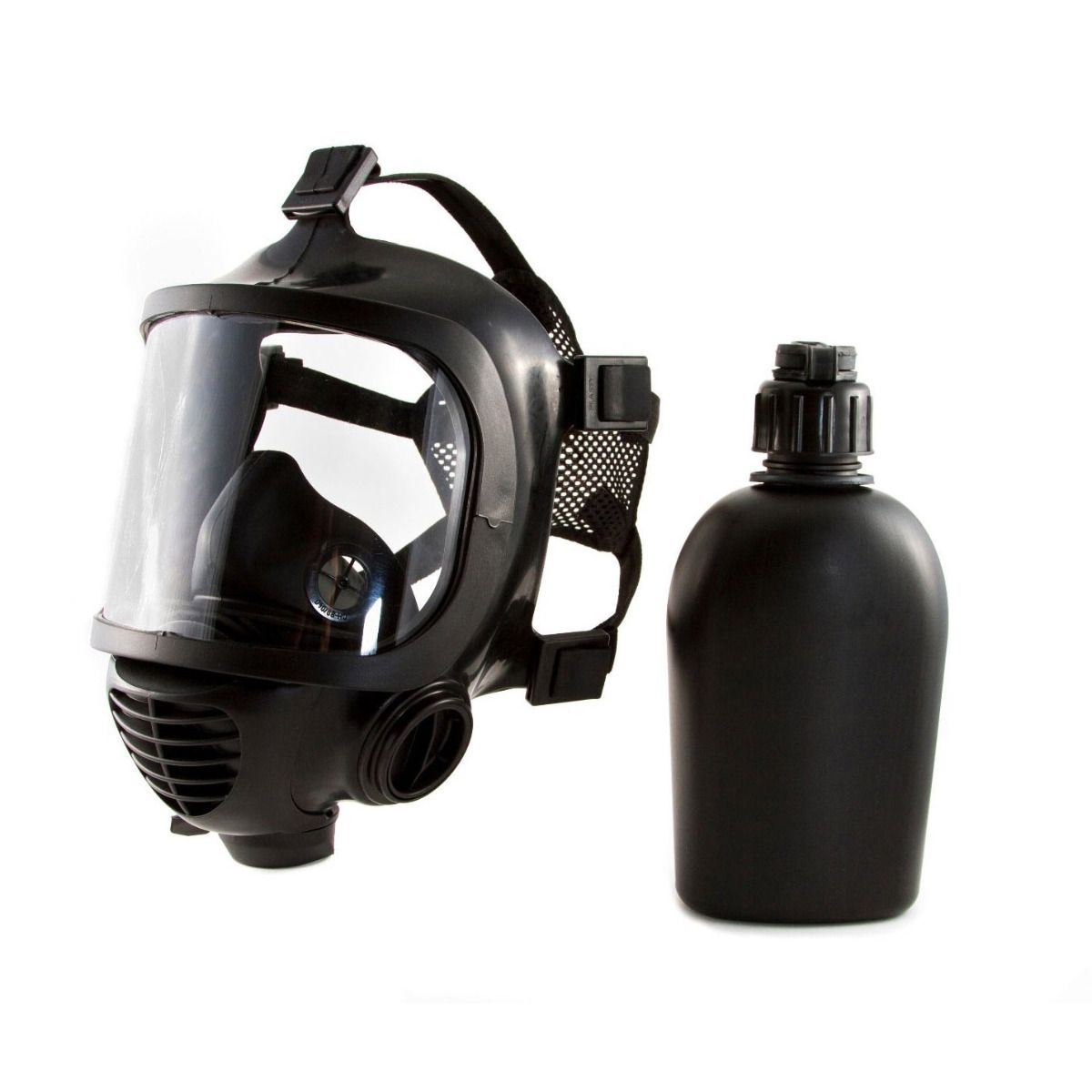

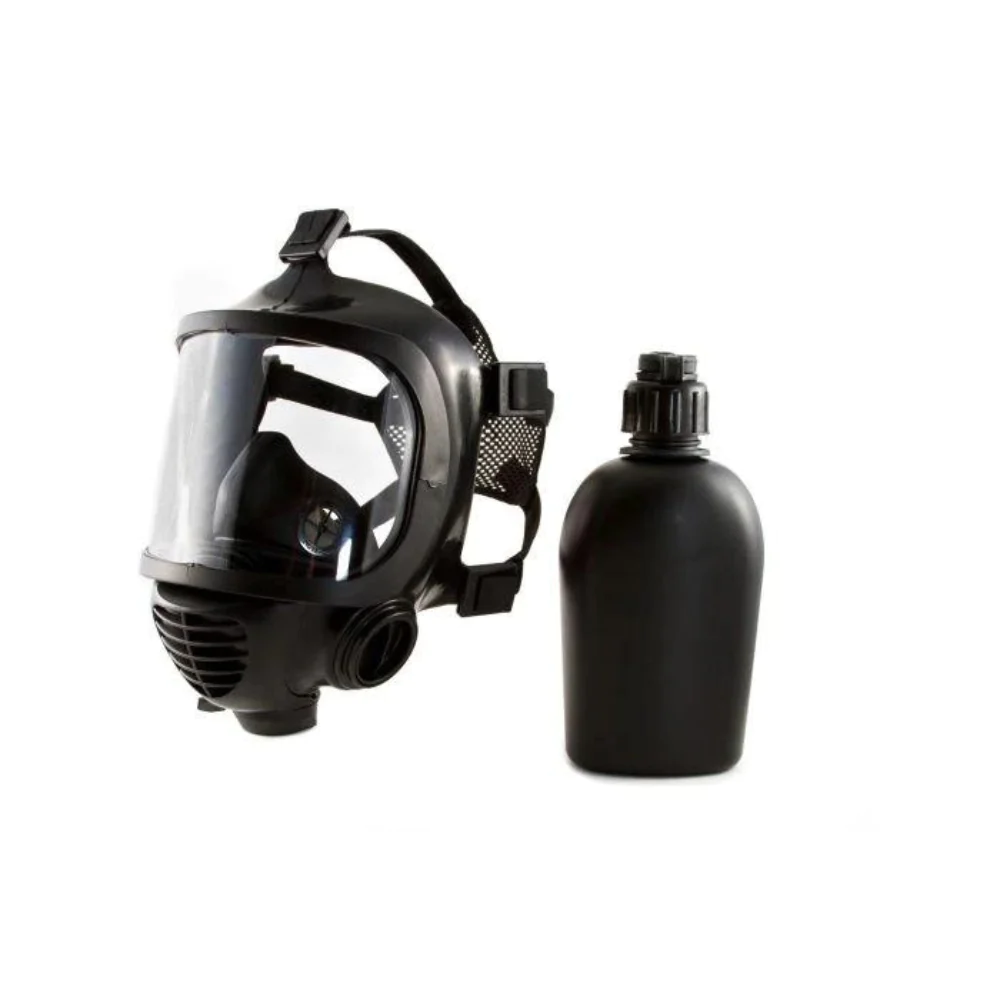

AVEC-CHEM CM-6M Gas mask supplied with its water tank – designed to ensure optimal vision and comfort, ensures protection of the respiratory tract and face against toxic NRBC agents (vapours, gases, aerosols, contaminated dust) in conjunction with either filter cartridges, or a motorized respirator.

Mask standardized CE EN 136: 1998, class III & EN 148-1 (thread), made of bromobutyl rubber (vulcanized polyIsobutylene) – maximum impermeability to TIC (Toxic Industrial Chemicals) and CWA (Chemical Warfare Agents), excellent thermal resistance and mechanics. Internal half mask in hypoallergenic silicone, perfectly waterproof – no fogging, even in the event of sustained effort – significant reduction in the presence of CO2 in the mask & low mechanical resistance during inspiration/expiration (physiological constraints of the wearer greatly reduced ).

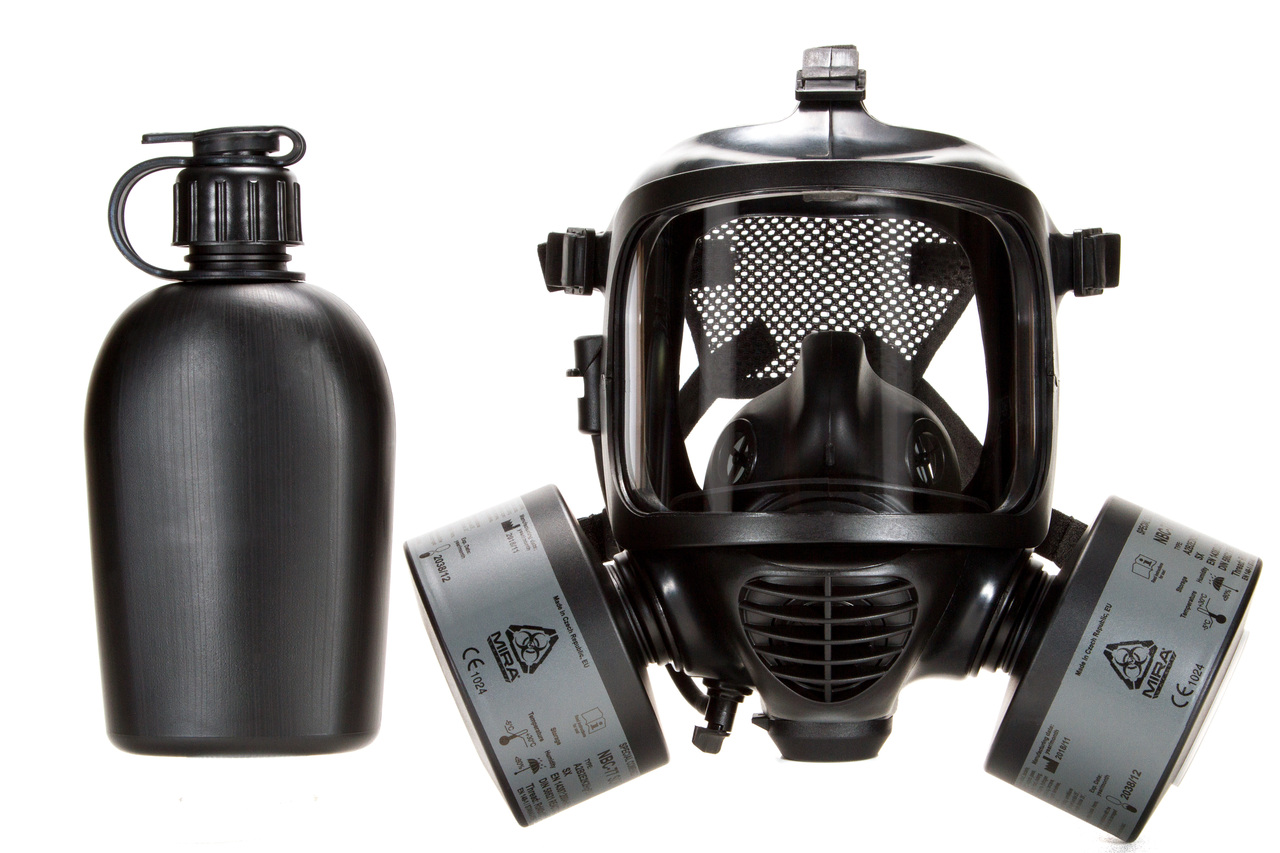

Two lateral threads (40×1/7 “ – 40mm NATO standard) allow the addition of two filter cartridges simultaneously – depending on the saturation of the atmosphere with toxic agent – or of one cartridge alone (the second thread being then locked and waterproof). The hydration system, supplied with its water tank – compatible with CAMELBACK type A & M adapters – is immediately operational.

The communication system allows 95% of voice exchanges to be understood – up to a distance of 2 to 3 meters, without sound distortion. Attachment of the mask by a head harness (rubber & textile) – intended for wearing a ballistic helmet, integration of glasses (not supplied) in the compartment provided in the mask if necessary.

LIFESPAN: 20 YEARS / MANUFACTURER’S GUARANTEE: 05 YEARS
TIGHTNESS TESTED ON EXPOSURE TO “MUSTARD” GAS FOR 30 HOURS

Product data :

• Made from bromobutyl rubber (vulcanized polyisobutylene) – one size
• supplied with its water tank
• Panoramic vision – 180° visor (polymer manufacturing)
• Inner half mask in hypoallergenic silicone – no fogging, even during effort
• Compatible with wearing a ballistic helmet and wearing prescription glasses
• Integrated hydration system – compatible with CAMELBACK adapters
• Phonic system – 95% distinct conversation understanding
• Fixation by head harness (05 straps)
• 02 40mm NATO threads – for attaching two 40mm cartridges simultaneously (or connecting with a respirator)

Prohibition of use :

• In an atmosphere with a level of less than 19.5% oxygen – below that a self-contained breathing apparatus is mandatory
• In an explosive atmosphere greater than class 01 (for Europe and France refer to the ATEX classification – zone 01)
• As far as possible, no beard, no long hair – for optimal sealing

Standardization & validation :

• Mask and mask subassembly: EN 136: 1998, class III
• Reception threads: EN 148-1
• Serving with forces: Saudi Arabia, Czech Republic, Norway, Portugal, Chile, Turkey, Kuwait, Latvia & Lebanon

Technical data :

Mechanical resistance to inspiration/expiration (flow 30l/min) – in Pa (pascal)

Storage :

• In a cool room, without light, regularly ventilated, without any electrical or chemical equipment
• Maximum relative humidity of 65%
• Temperatures in a range between 10° and 25°C
