Description

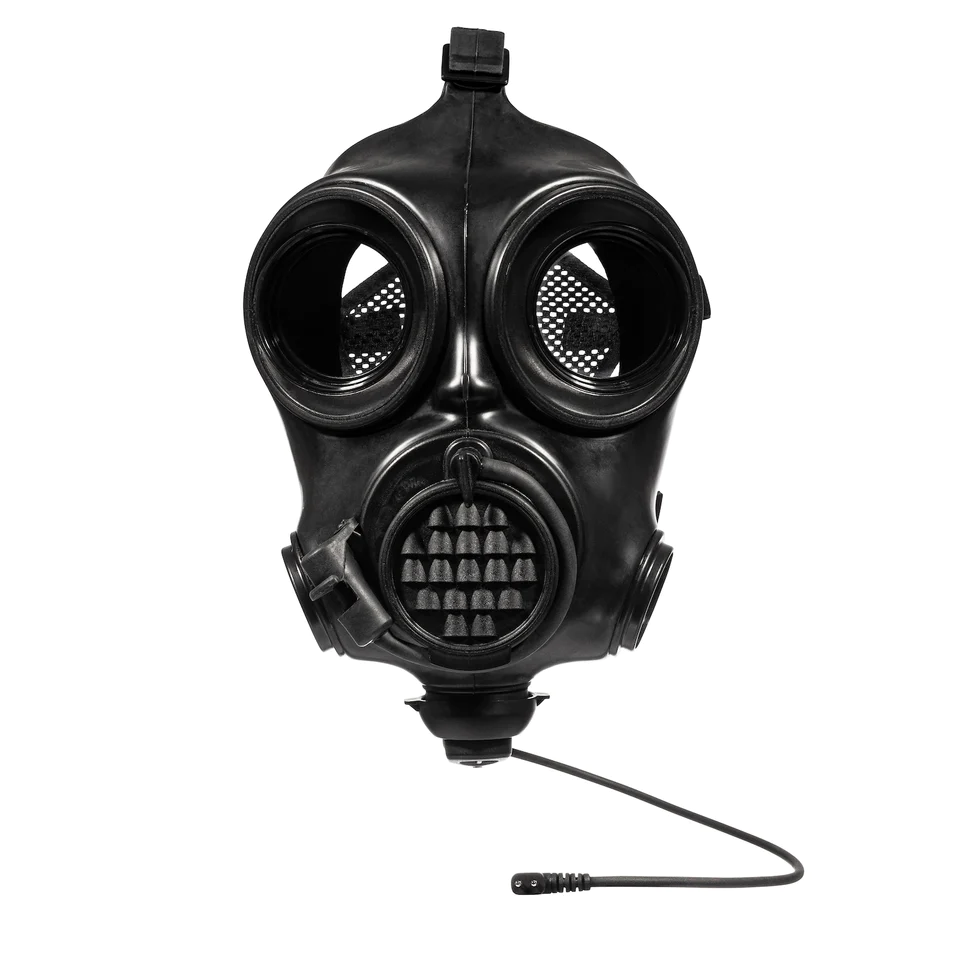

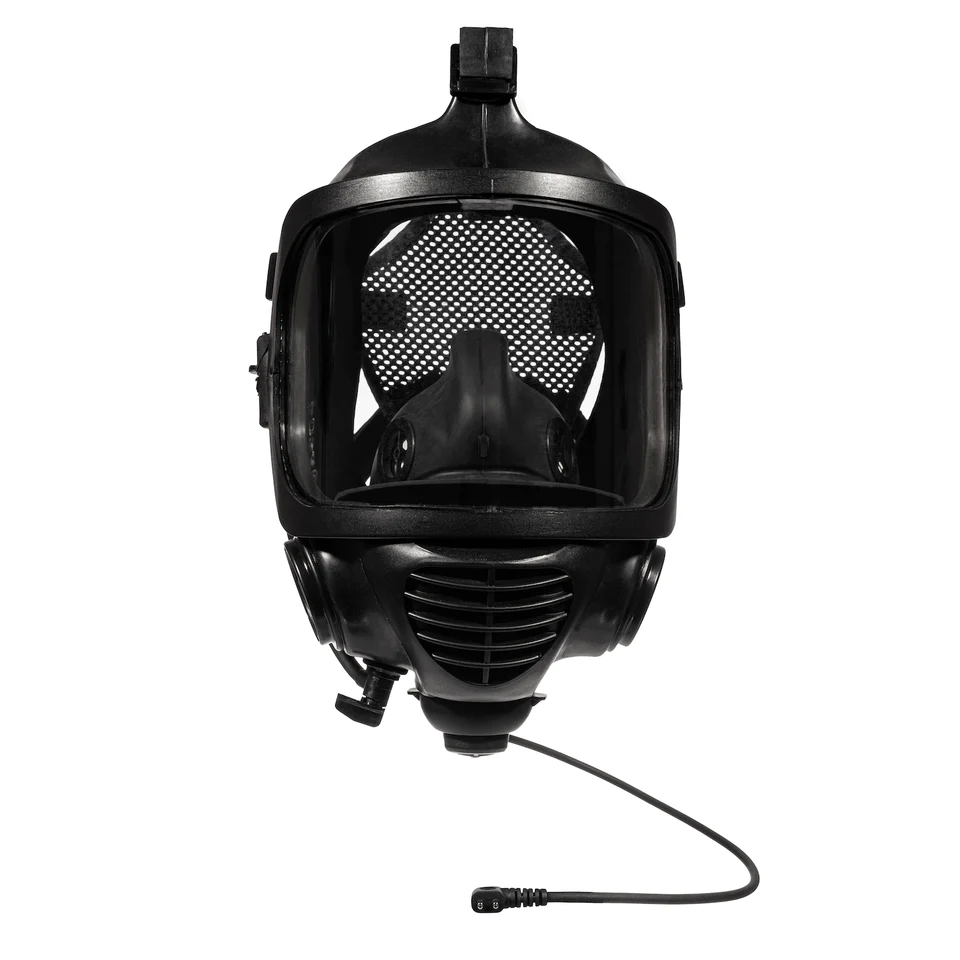

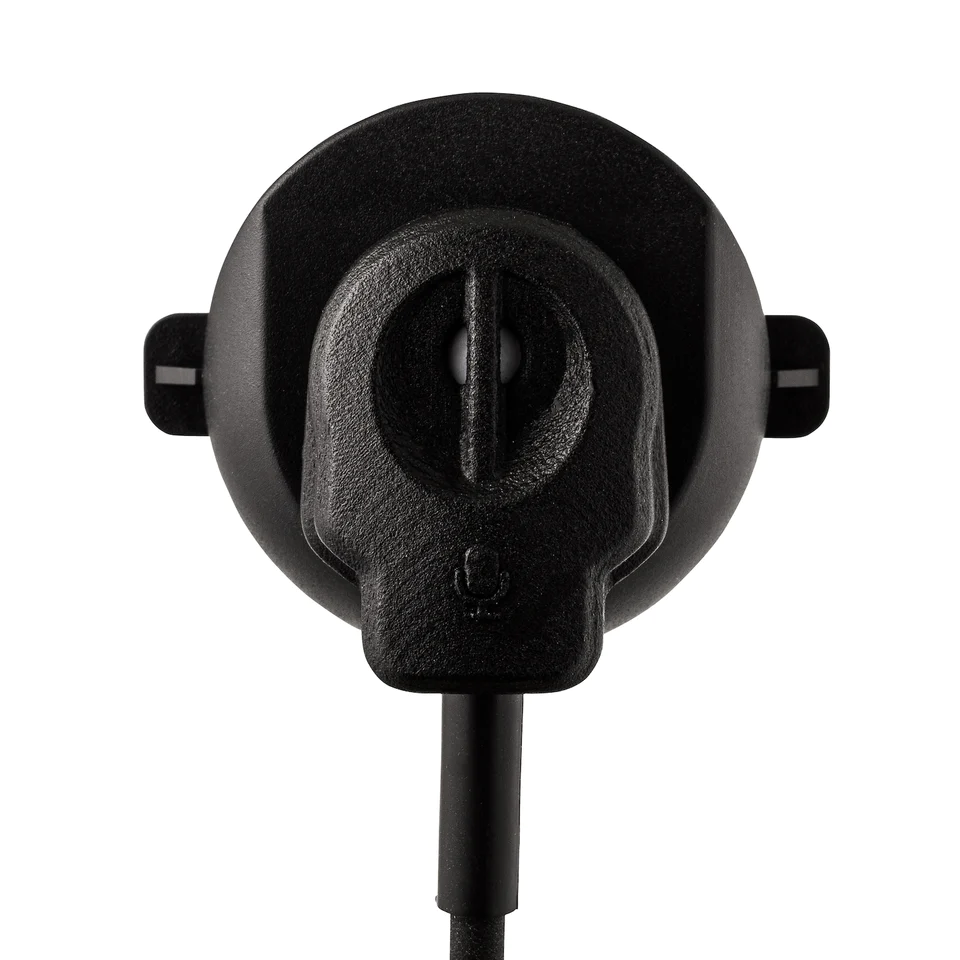

AVEC CHEM TAPR Microphone (Tactical Air Purifying Respirator Microphone) for gas mask – a tactical microphone dedicated to CM-6, OM 90, OM 2020 & TAPR half mask gas masks. Attaches to the exhalation valve, in seconds and without modifications – the mask remains perfectly operational. Proposed in 7 different versions (different connectors for most communication systems on the market).

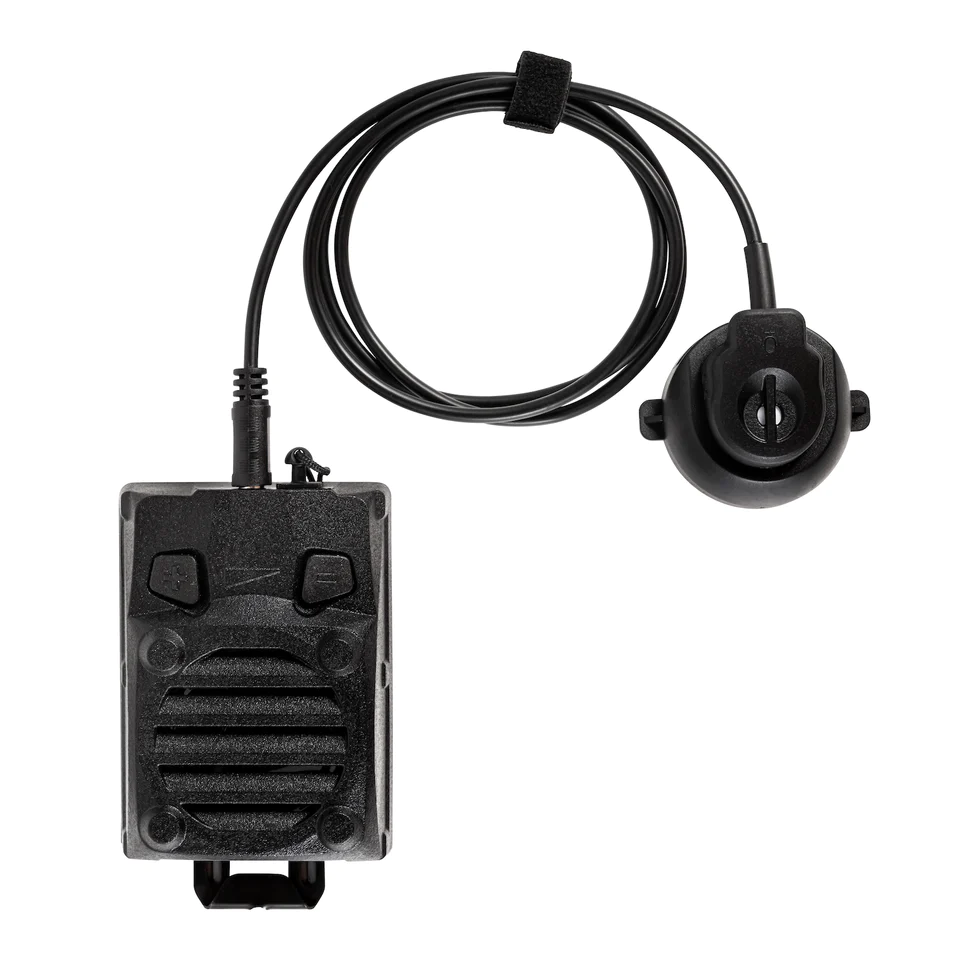

Robust – hardened polymer – and extremely light, manufactured according to MIL-STD-461G & MIL-STD-810G standards, validated IP67 for an average lifespan of 30,000 hours of use. Simple to install, simple to connect to a set of communication systems (push to talk, radio headset – NATO and PELTOR standard). Will also work with the voice amplifier WITH CHEM RVA (Respirator Voice Amplifier).

07 different versions – for all your communication systems

Robust, simple and quick to install – without modification

Product data :

• Tactical microphone for :
  • gas masks WITH CHEM CM-6, OM 90, OM 2020 & TAPR half mask
• Direct connection to your communication systems :
  • Radios, headsets or voice amplifiers

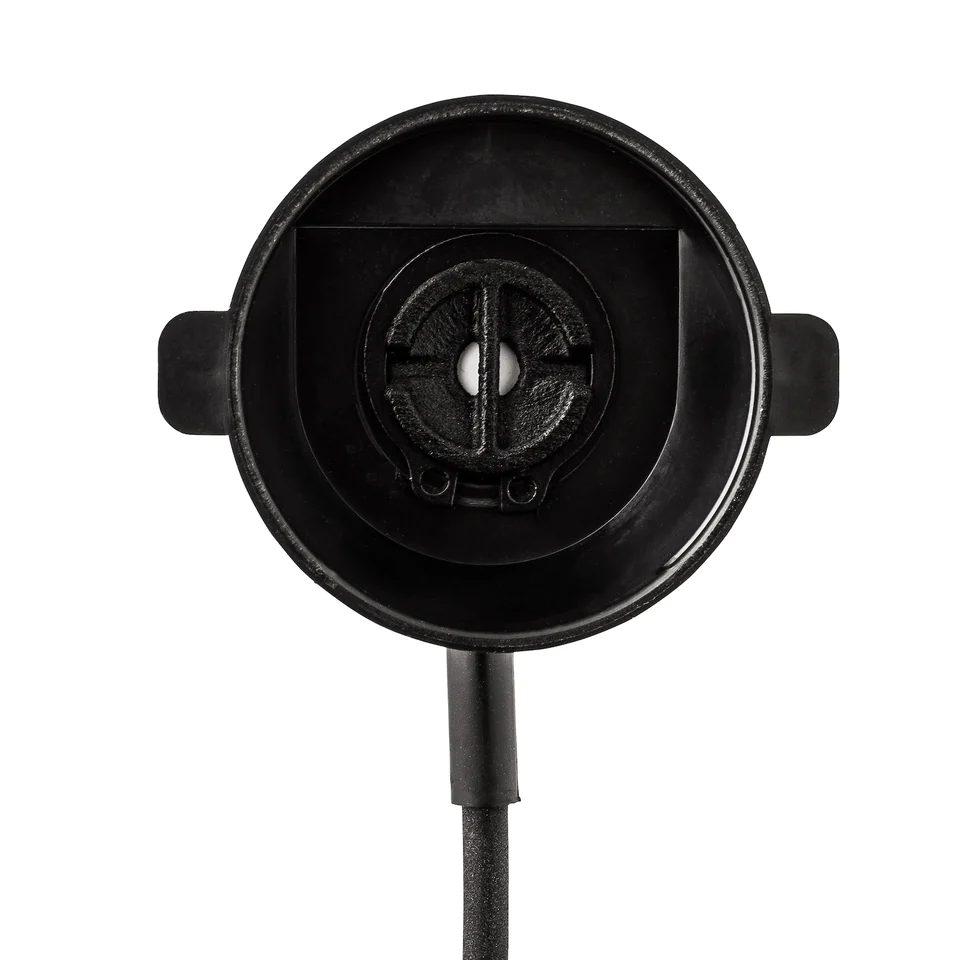

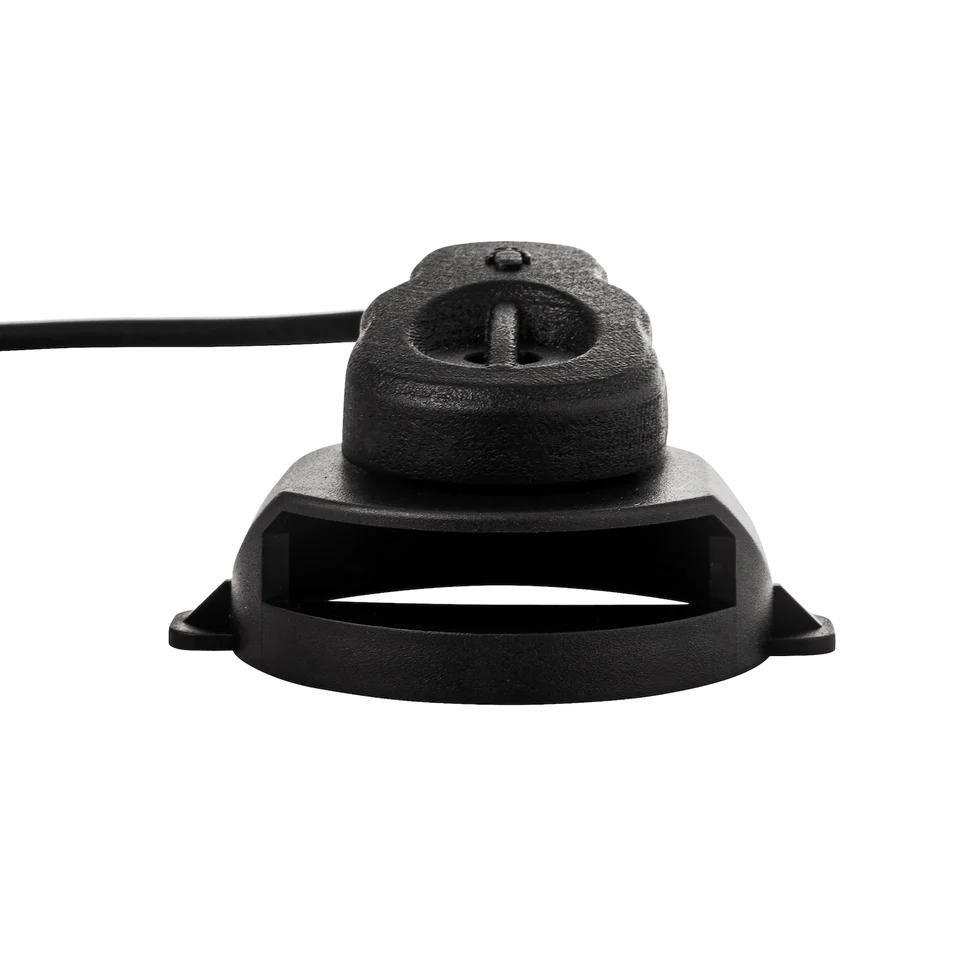

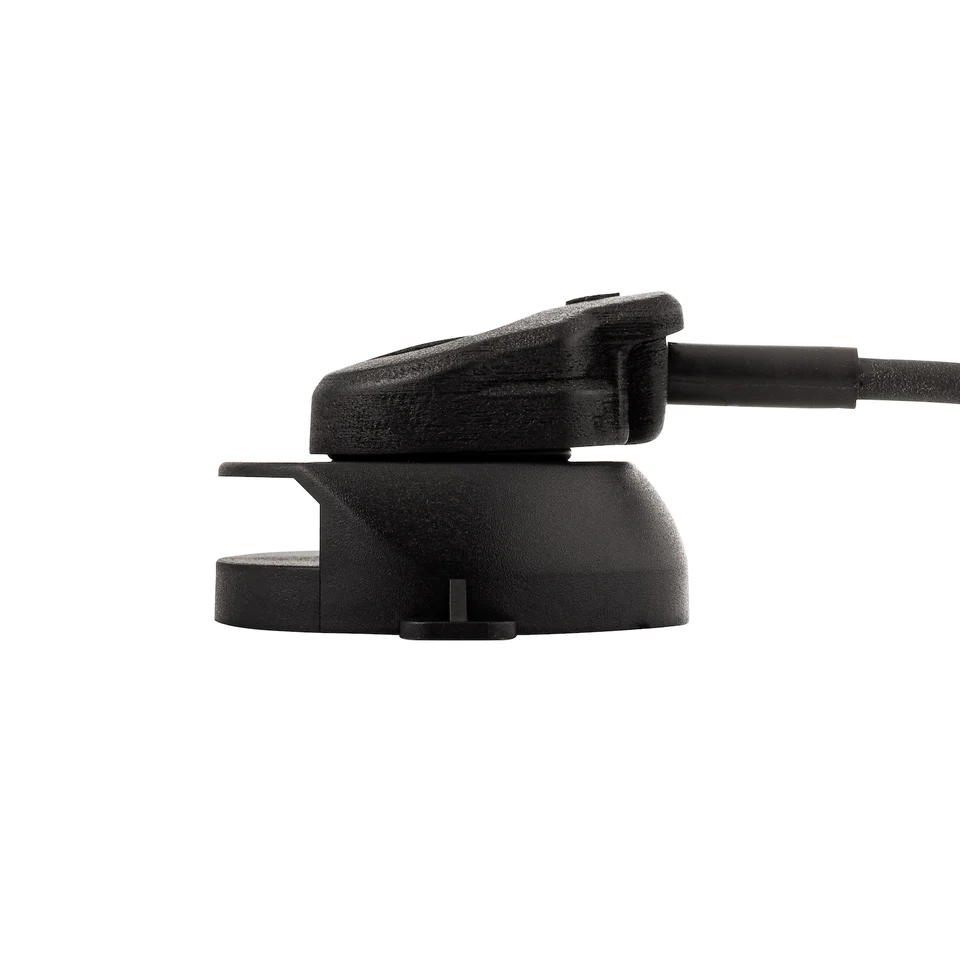

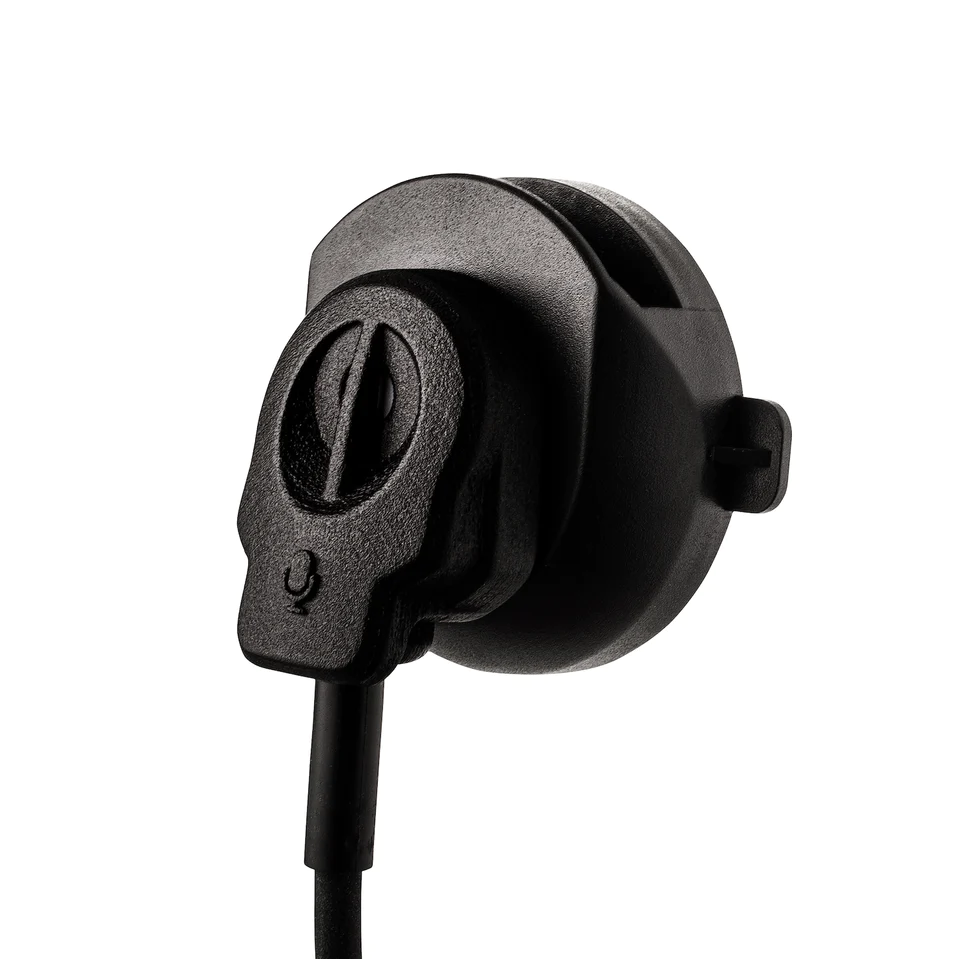

• Attachment to the central exhalation valve
• Robust, average lifespan of 30,000 hours

Connections available :

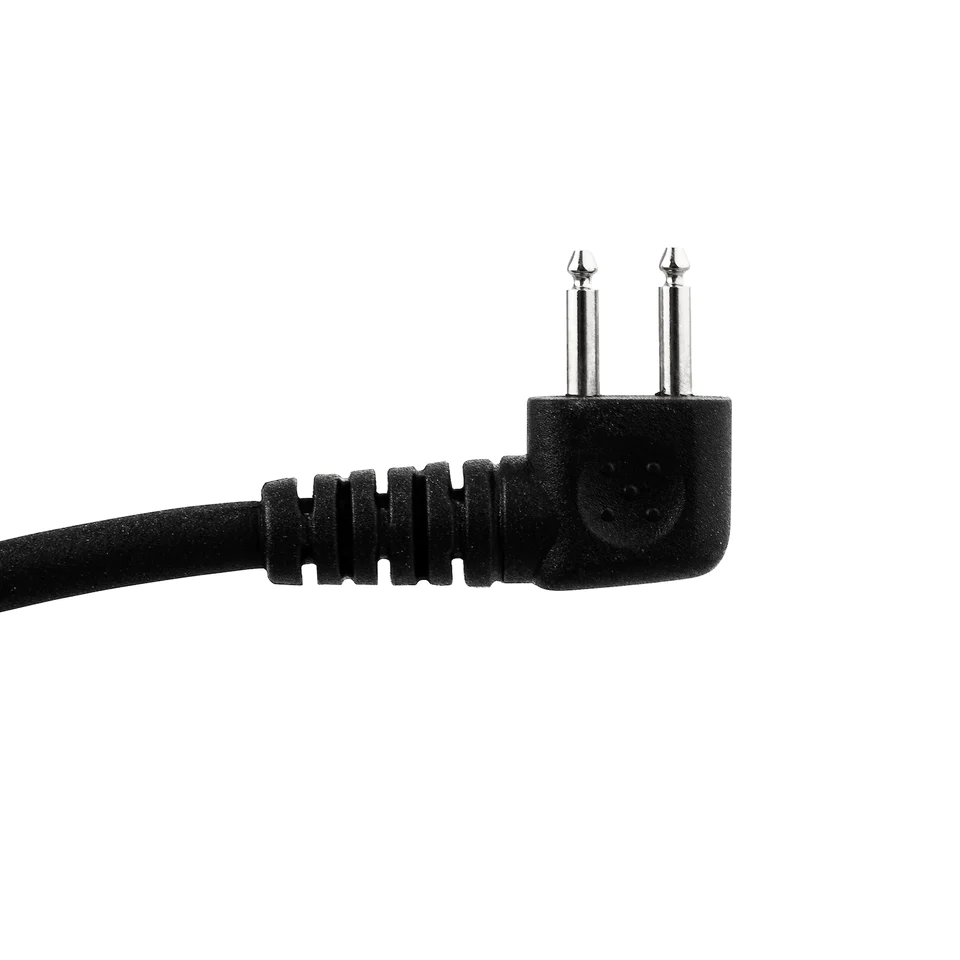

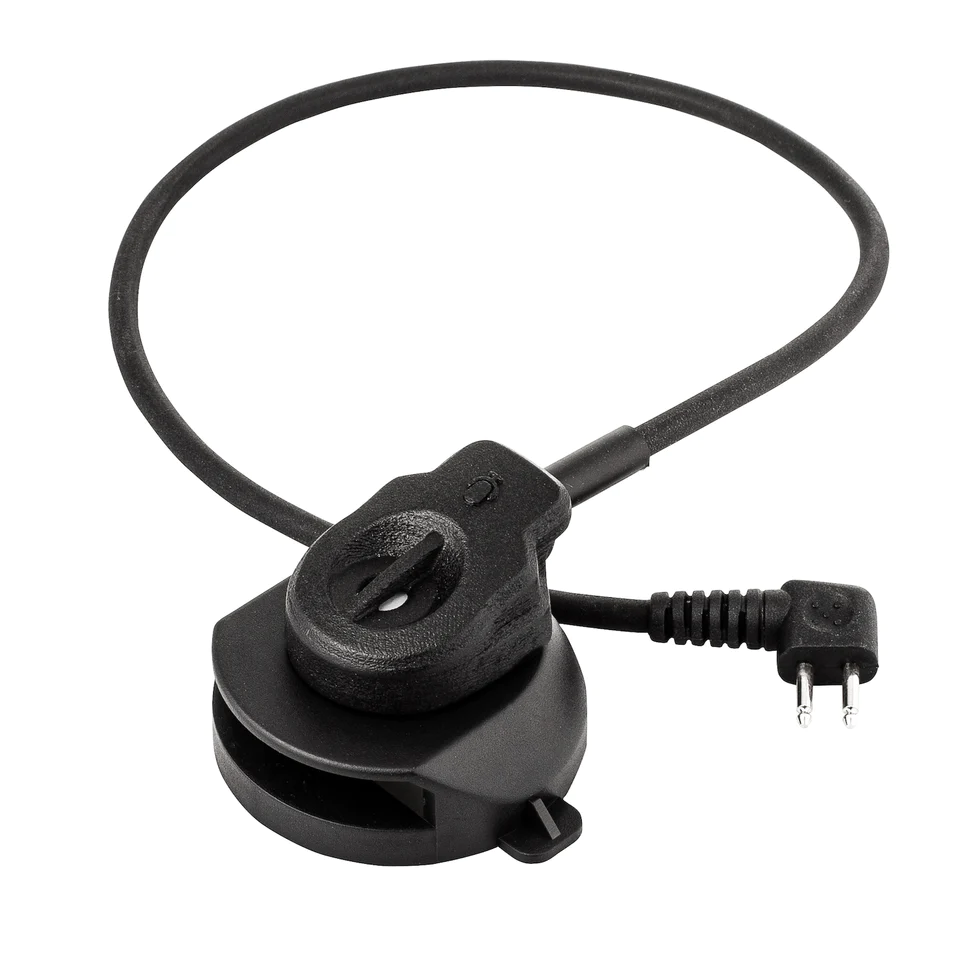

• TAPRM.01: U-173/U
  • (MIC + / MIC -) – length: 350 mm

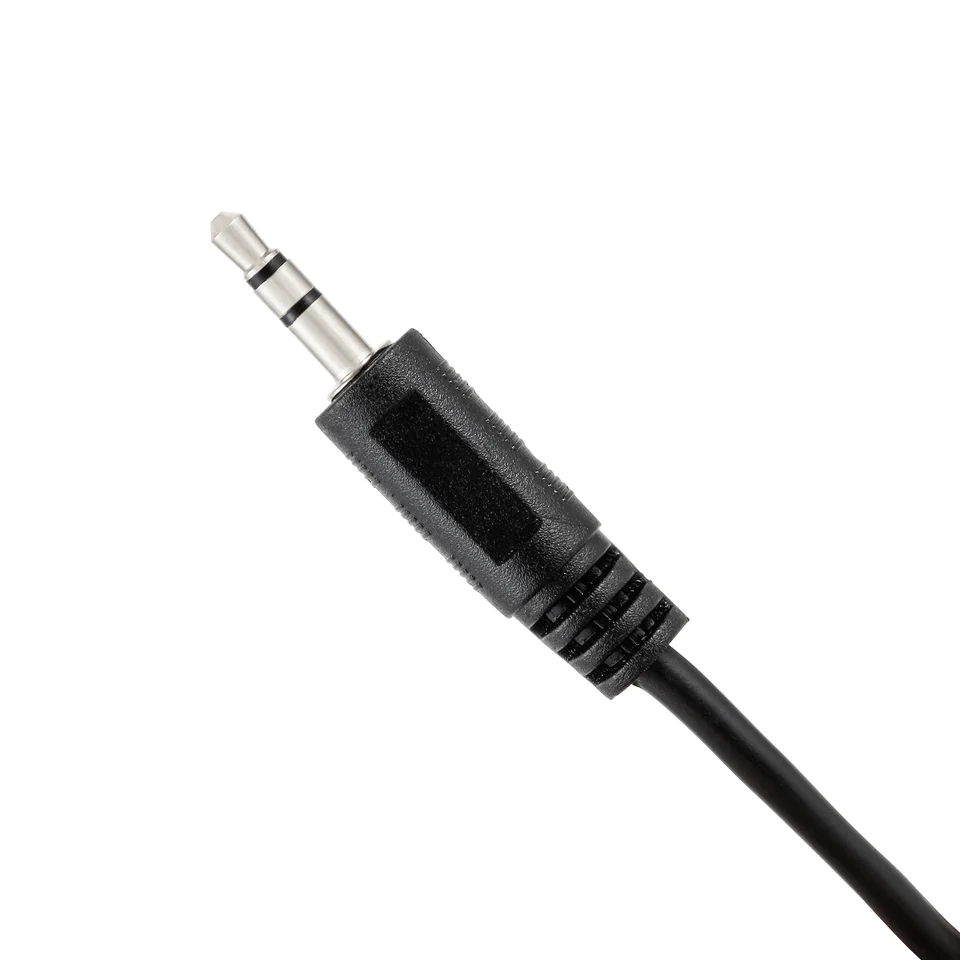

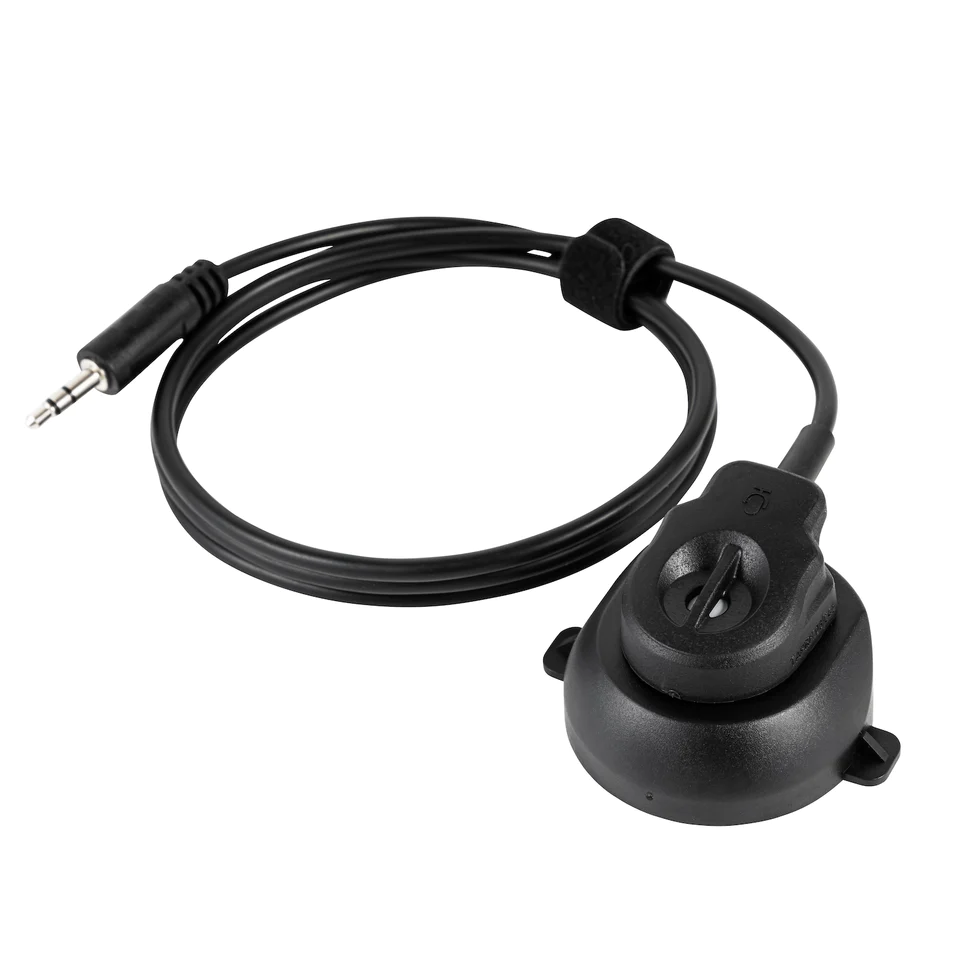

• TAPRM.02: 3.5 mm jack, stereo (TRS, 90°)
  • Tip TAPRM Signal (MIC +) / Ring Not Connected / Sleeve TAPRM Ground (MIC -) – length: 1000 mm
• TAPRM.03: TJ-101 (standard PELTOR)
  • 1 Not Connected / 2 Not Connected / 3 Headset Audio Input / 4 Headset Audio Ground – length: 600 mm
• TAPRM.03 bis: TJ-120 (PELTOR standard)
  • 1 TAPRM Ground (MIC -) / 2 TAPRM Signal (MIC +) / 3 Headset Audio Input / 4 Headset Audio Ground – length: 600 mm
• TAPRM.04: TJ-101 (NATO standard)
  • 1 Not Connected / 2 Headset Audio Input / 3 Not Connected / 4 Headset Audio Ground – length: 600 mm
• TAPRM.04 bis: TJ-120 (NATO standard)
  • 1 TAPRM Ground (MIC -) / 2 Headset Audio Input / 3 TAPRM Signal (MIC +) / 4 Headset Audio Ground – length: 600 mm
• TAPRM. 08: 3.5 mm jack, stereo (TRS)
  • Tip TAPRM Signal (MIC +) / Ring Not Connected / Sleeve TAPRM Ground (MIC -) – length: 1000 mm

Standardization & validation :

• MIL-STD-461G & MIL-STD-810G – compliant
• IP67
• ČSN EN 140
